Building a Brand Style Guide Generator with Firecrawl

Build a brand style guide generator that automatically extracts colors, typography, spacing, and visual identity from any website and compiles it into a professional PDF document.

What You'll Build#

A Node.js application that takes any website URL, extracts its complete brand identity using Firecrawl's branding format, and generates a polished PDF style guide with:

• Color palette with hex values
• Typography system (fonts, sizes, weights)
• Spacing and layout specifications
• Logo and brand imagery
• Theme information (light/dark mode)

Prerequisites#

• Node.js 18 or later installed
• A Firecrawl API key from firecrawl.dev
• Basic knowledge of TypeScript and Node.js

mkdir brand-style-guide-generator && cd brand-style-guide-generatornpm init -y

{  "name": "brand-style-guide-generator",  "version": "1.0.0",  "type": "module",  "scripts": {    "start": "npx tsx index.ts"  }}

npm i firecrawl pdfkitnpm i -D typescript tsx @types/node @types/pdfkit

import { Firecrawl } from "firecrawl";import PDFDocument from "pdfkit";import fs from "fs";const API_KEY = "fc-YOUR-API-KEY";const URL = "https://firecrawl.dev";async function main() {  const fc = new Firecrawl({ apiKey: API_KEY });  const { branding: b } = (await fc.scrape(URL, { formats: ["branding"] })) as any;  const doc = new PDFDocument({ size: "A4", margin: 50 });  doc.pipe(fs.createWriteStream("brand-style-guide.pdf"));  // Fetch logo (PNG/JPG only)  let logoImg: Buffer | null = null;  try {    const logoUrl = b.images?.favicon || b.images?.ogImage;    if (logoUrl?.match(/\.(png|jpg|jpeg)$/i)) {      const res = await fetch(logoUrl);      logoImg = Buffer.from(await res.arrayBuffer());    }  } catch {}  // Header with logo  doc.rect(0, 0, 595, 120).fill(b.colors?.primary || "#333");  const titleX = logoImg ? 130 : 50;  if (logoImg) doc.image(logoImg, 50, 30, { height: 60 });  doc.fontSize(36).fillColor("#fff").text("Brand Style Guide", titleX, 38);  doc.fontSize(14).text(URL, titleX, 80);  // Colors  doc.fontSize(18).fillColor("#333").text("Colors", 50, 160);  const colors = Object.entries(b.colors || {}).filter(([, v]) => typeof v === "string" && (v as string).startsWith("#"));  colors.forEach(([k, v], i) => {    const x = 50 + i * 100;    doc.rect(x, 195, 80, 80).fill(v as string);    doc.fontSize(10).fillColor("#333").text(k, x, 282, { width: 80, align: "center" });    doc.fontSize(9).fillColor("#888").text(v as string, x, 296, { width: 80, align: "center" });  });  // Typography  doc.fontSize(18).fillColor("#333").text("Typography", 50, 340);  doc.fontSize(13).fillColor("#444");  doc.text(`Primary Font: ${b.typography?.fontFamilies?.primary || "—"}`, 50, 370);  doc.text(`Heading Font: ${b.typography?.fontFamilies?.heading || "—"}`, 50, 392);  doc.fontSize(12).fillColor("#666").text("Font Sizes:", 50, 422);  Object.entries(b.typography?.fontSizes || {}).forEach(([k, v], i) => {    doc.text(`${k.toUpperCase()}: ${v}`, 70, 445 + i * 22);  });  // Spacing & Theme  doc.fontSize(18).fillColor("#333").text("Spacing & Theme", 320, 340);  doc.fontSize(13).fillColor("#444");  doc.text(`Base Unit: ${b.spacing?.baseUnit}px`, 320, 370);  doc.text(`Border Radius: ${b.spacing?.borderRadius}`, 320, 392);  doc.text(`Color Scheme: ${b.colorScheme}`, 320, 414);  doc.end();  console.log("Generated: brand-style-guide.pdf");}main();

npm start

How It Works#

Extraction Process#

1. URL Input: The generator receives a target website URL
2. Firecrawl Scrape: Calls the /scrape endpoint with the branding format
3. Brand Analysis: Firecrawl analyzes the page's CSS, fonts, and visual elements
4. Data Return: Returns a structured BrandingProfile object with all design tokens

PDF Generation Process#

1. Header Creation: Generates a colored header using the primary brand color
2. Logo Fetch: Downloads and embeds the logo or favicon if available
3. Color Palette: Renders each color as a visual swatch with metadata
4. Typography Section: Documents font families, sizes, and weights
5. Spacing Info: Includes base units, border radius, and theme mode

Branding Profile Structure#

The branding format returns detailed brand information:

{  colorScheme: "dark" | "light",  logo: "https://example.com/logo.svg",  colors: {    primary: "#FF6B35",    secondary: "#004E89",    accent: "#F77F00",    background: "#1A1A1A",    textPrimary: "#FFFFFF",    textSecondary: "#B0B0B0"  },  typography: {    fontFamilies: { primary: "Inter", heading: "Inter", code: "Roboto Mono" },    fontSizes: { h1: "48px", h2: "36px", body: "16px" },    fontWeights: { regular: 400, medium: 500, bold: 700 }  },  spacing: {    baseUnit: 8,    borderRadius: "8px"  },  images: {    logo: "https://example.com/logo.svg",    favicon: "https://example.com/favicon.ico"  }}

Key Features#

Automatic Color Extraction#

The generator identifies and categorizes all brand colors:

• Primary & Secondary: Main brand colors
• Accent: Highlight and CTA colors
• Background & Text: UI foundation colors
• Semantic Colors: Success, warning, error states

Typography Documentation#

Captures the complete type system:

• Font Families: Primary, heading, and monospace fonts
• Size Scale: All heading and body text sizes
• Font Weights: Available weight variations

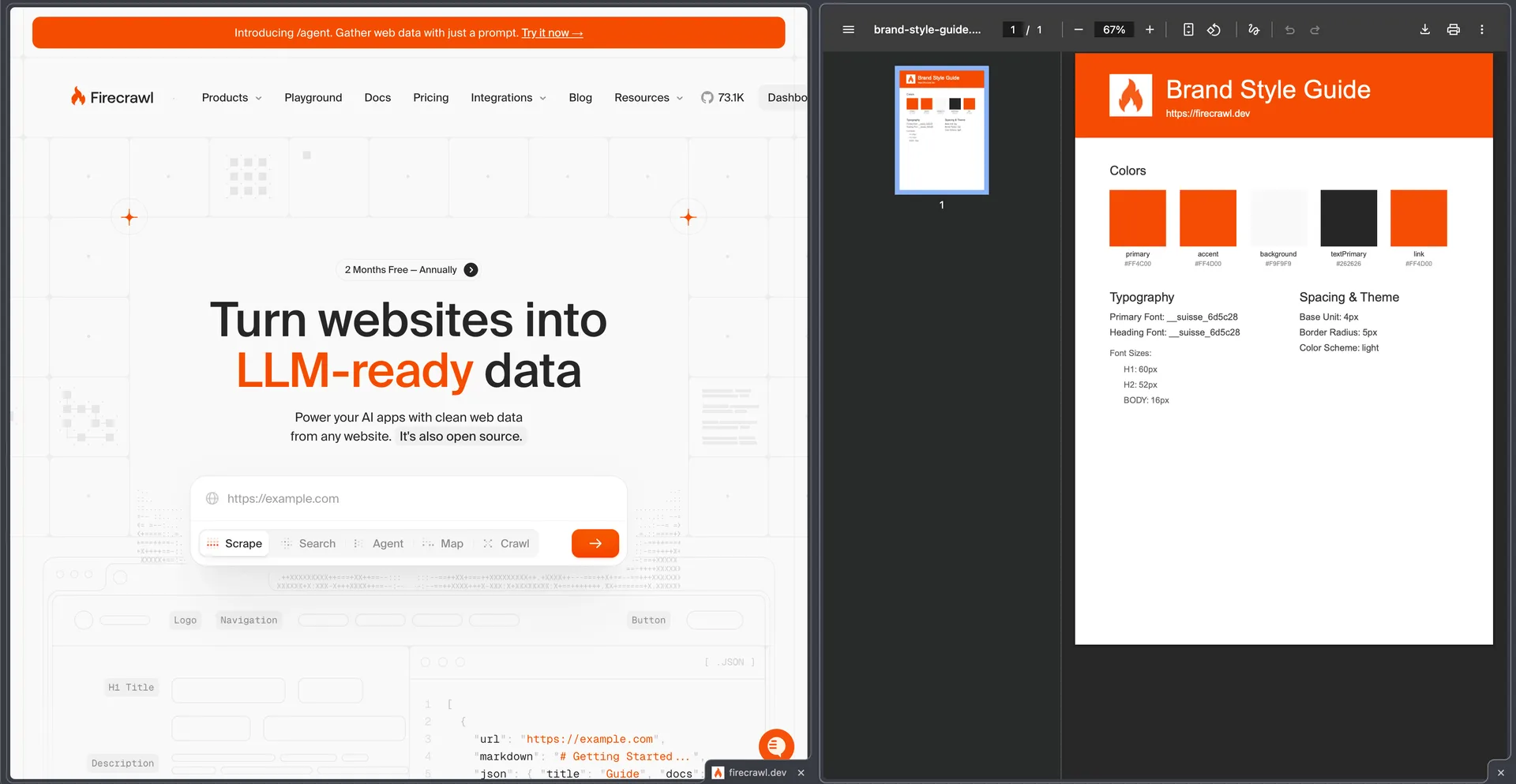

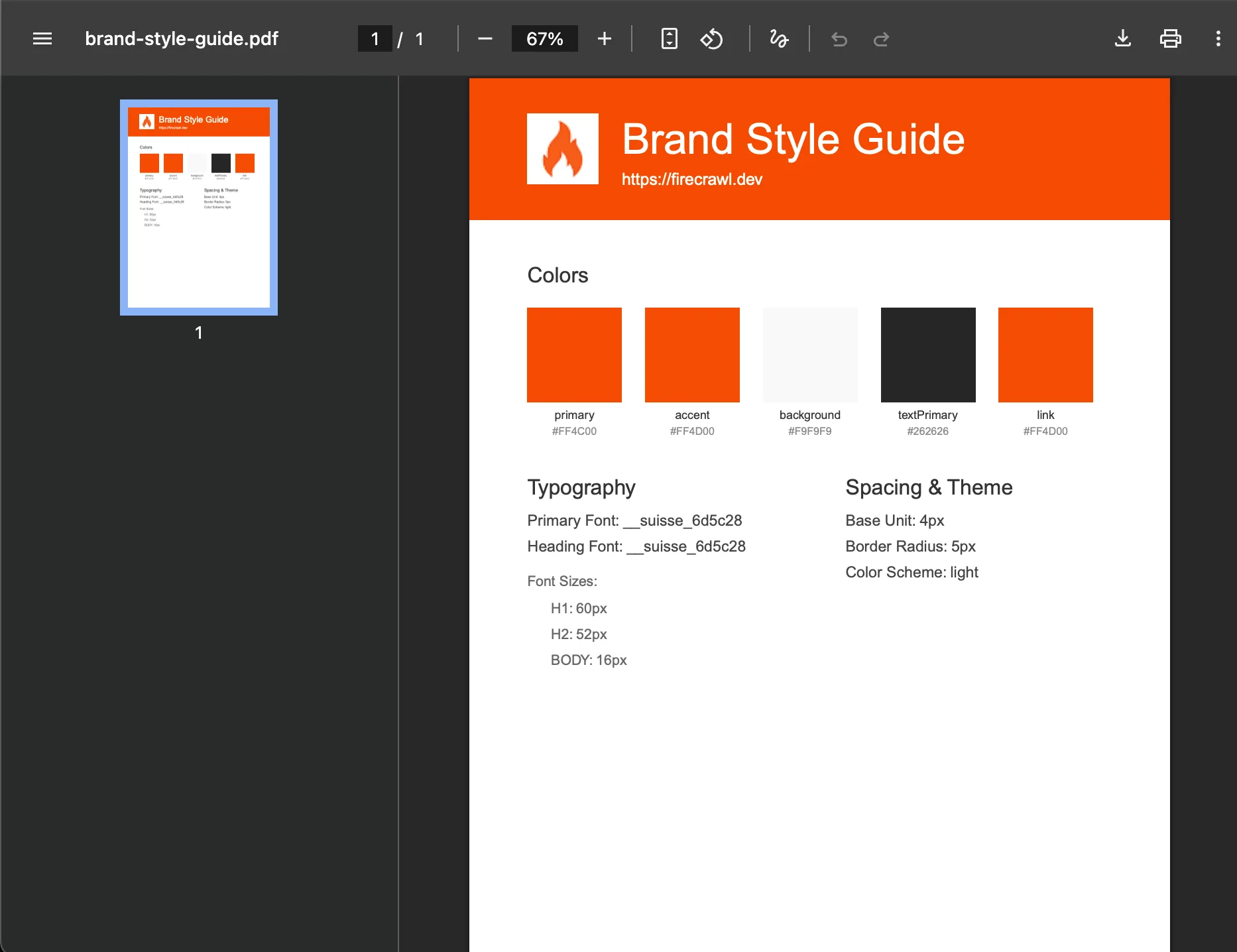

Visual Output#

The PDF includes:

• Color-coded header matching the brand
• Embedded logo when available
• Professional layout with clear hierarchy
• Metadata footer with generation date

Customization Ideas#

Add Component Documentation#

Extend the generator to include UI component styles:

// Add after the Spacing & Theme sectionif (b.components) {  doc.addPage();  doc.fontSize(20).fillColor("#333").text("UI Components", 50, 50);  // Document button styles  if (b.components.buttonPrimary) {    const btn = b.components.buttonPrimary;    doc.fontSize(14).text("Primary Button", 50, 90);    doc.rect(50, 110, 120, 40).fill(btn.background);    doc.fontSize(12).fillColor(btn.textColor).text("Button", 50, 120, { width: 120, align: "center" });  }}

Export Multiple Formats#

Add JSON export alongside the PDF:

// Add before doc.end()fs.writeFileSync("brand-data.json", JSON.stringify(b, null, 2));

Batch Processing#

Generate guides for multiple websites:

const websites = [  "https://stripe.com",  "https://linear.app",  "https://vercel.com"];for (const site of websites) {  const { branding } = await fc.scrape(site, { formats: ["branding"] }) as any;  // Generate PDF for each site...}

Custom PDF Themes#

Create different PDF styles based on the extracted theme:

const isDarkMode = b.colorScheme === "dark";const headerBg = isDarkMode ? b.colors?.background : b.colors?.primary;const textColor = isDarkMode ? "#fff" : "#333";

Best Practices#

1. Handle Missing Data: Not all websites expose complete branding information. Always provide fallback values for missing properties.

2. Respect Rate Limits: When batch processing multiple sites, add delays between requests to respect Firecrawl's rate limits.

3. Cache Results: Store extracted branding data to avoid repeated API calls for the same site.

4. Image Format Handling: Some logos may be in formats PDFKit doesn't support (like SVG). Consider adding format conversion or graceful fallbacks.

5. Error Handling: Wrap the generation process in try-catch blocks and provide meaningful error messages.
